Key Features
- Carbon Fiber Reinforced Nylon (PA6-CF)
20% carbon fiber delivers exceptional stiffness, strength, and dimensional stability - Extreme Heat Resistance up to 209°C
Maintains structural integrity under high temperatures, ideal for demanding environments - Industrial-Grade Strength & Reliability
Excellent layer adhesion with high tensile, torsional, and impact resistance for functional parts

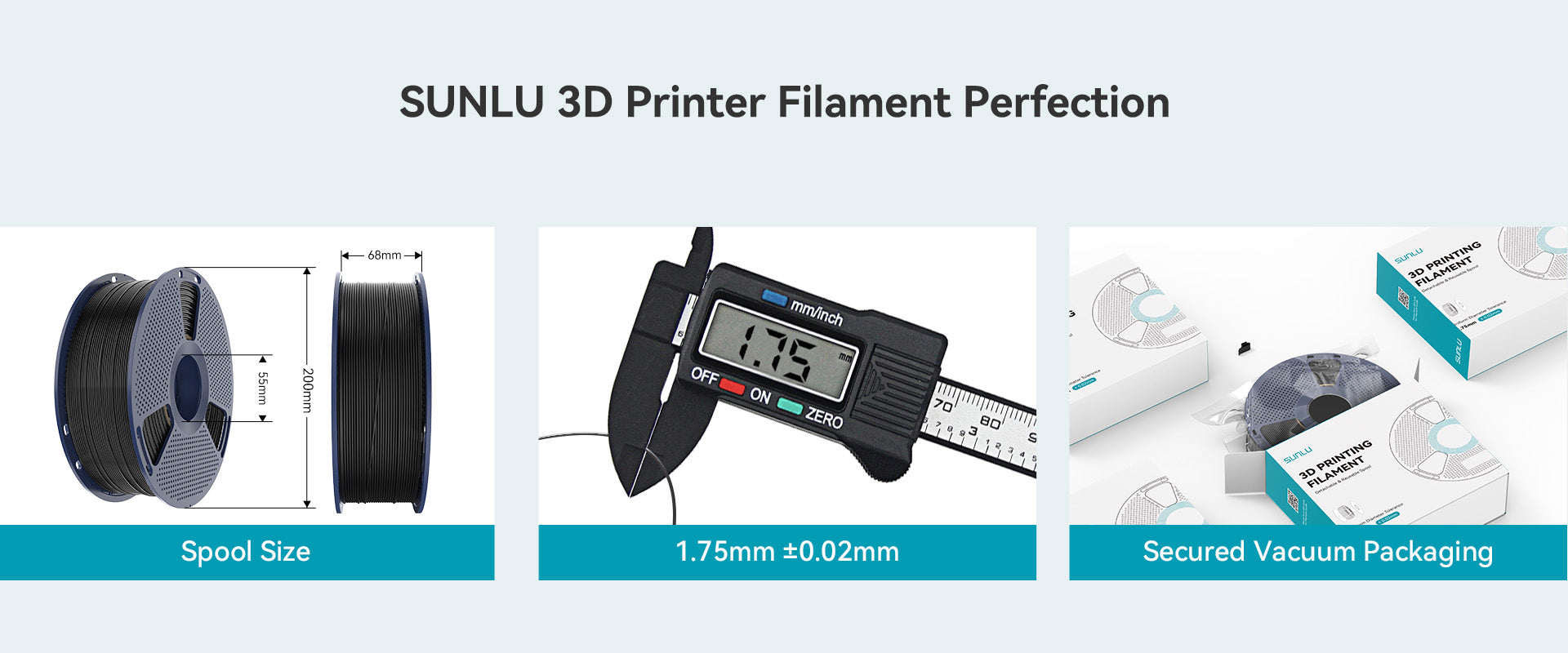

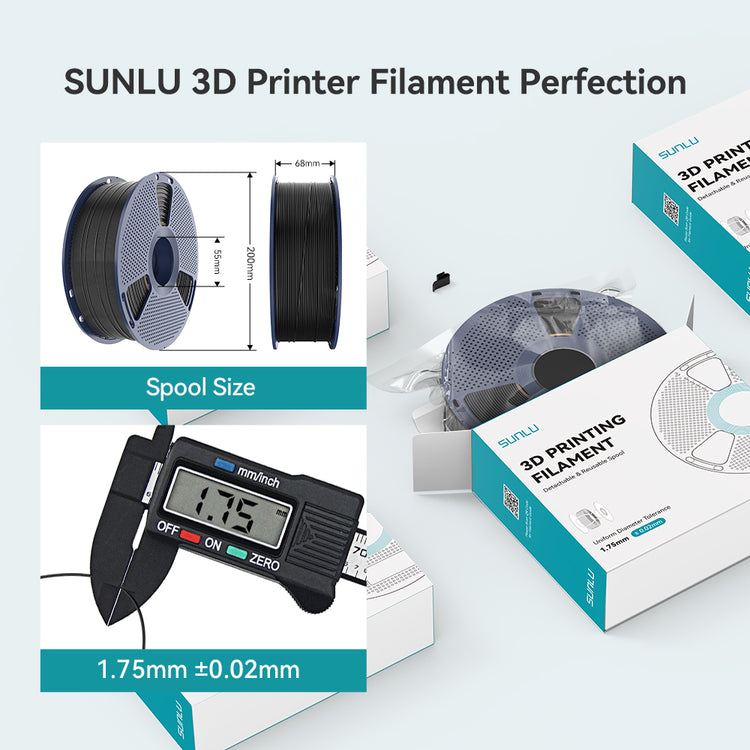

Diameter: 1.75±0.02mm
Printing Temperature:
- 270-280℃：50-100mm/s
Bed Temperature:
- 50–70°C: apply glue
Bubbles: 100% zero bubbles
Net Weight: 1 kg/spool
Gross Weight: 1.3 kg/spool
Length: 1.75 mm (1 kg) ≈ 358 m
- Free shipping to most of UK regions
- Guaranteed Secure Checkout

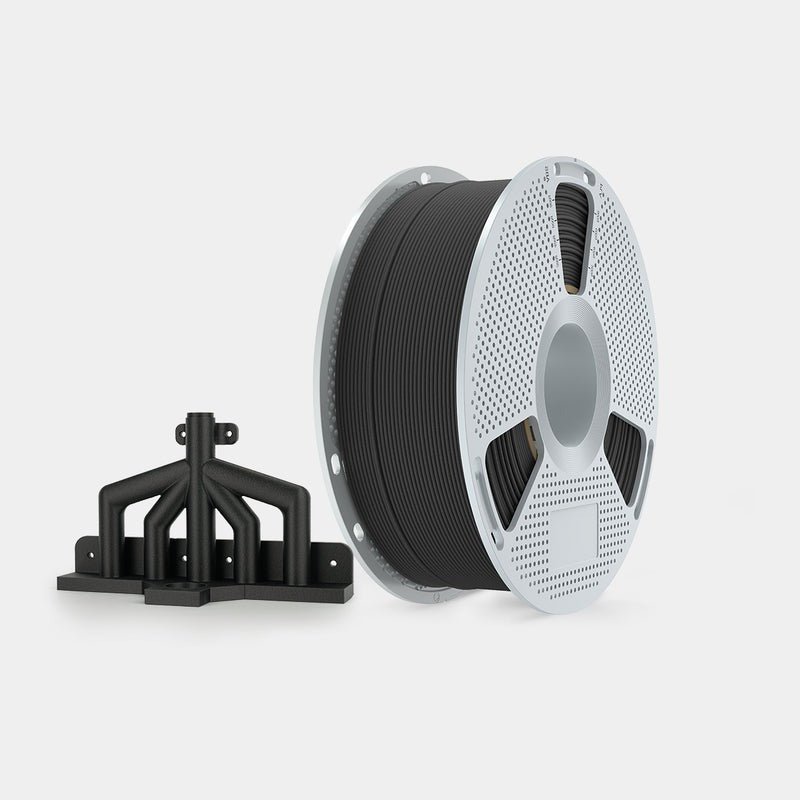

SUNLU Nylon-6 Carbon Fiber (PA6-CF) Filament

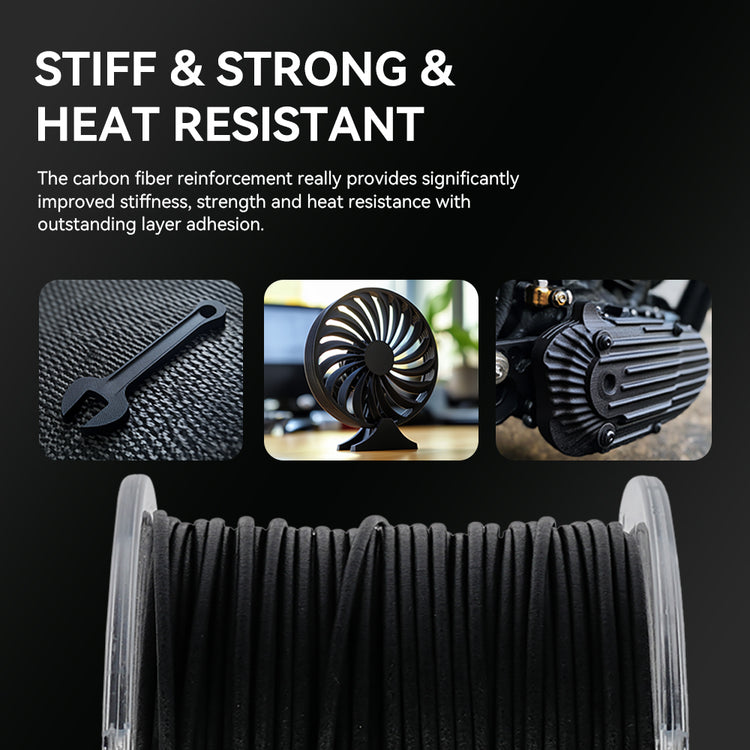

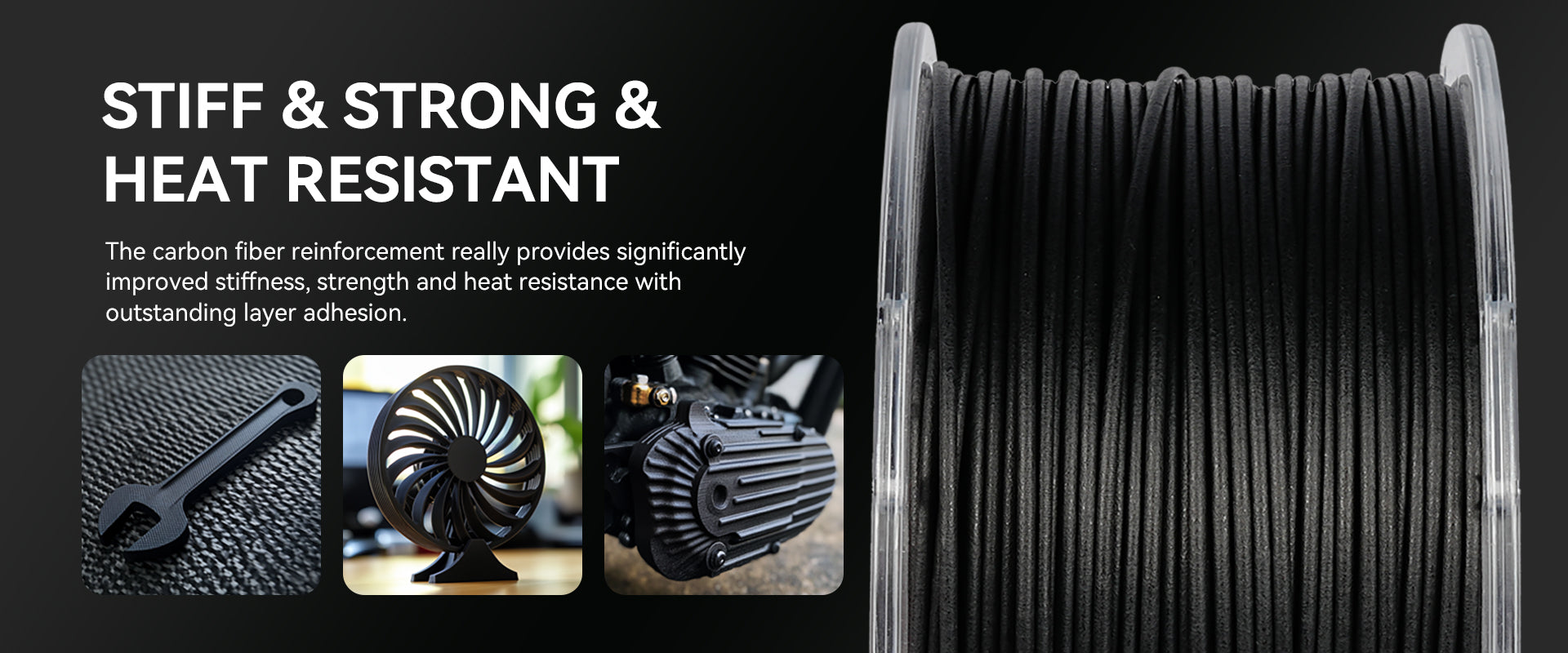

SUNLU PA6-CF nylon filament combines 80% PA with 20% carbon fiber, delivering remarkable stiffness, strength, and heat resistance. It offers excellent layer adhesion, making it ideal for demanding applications.

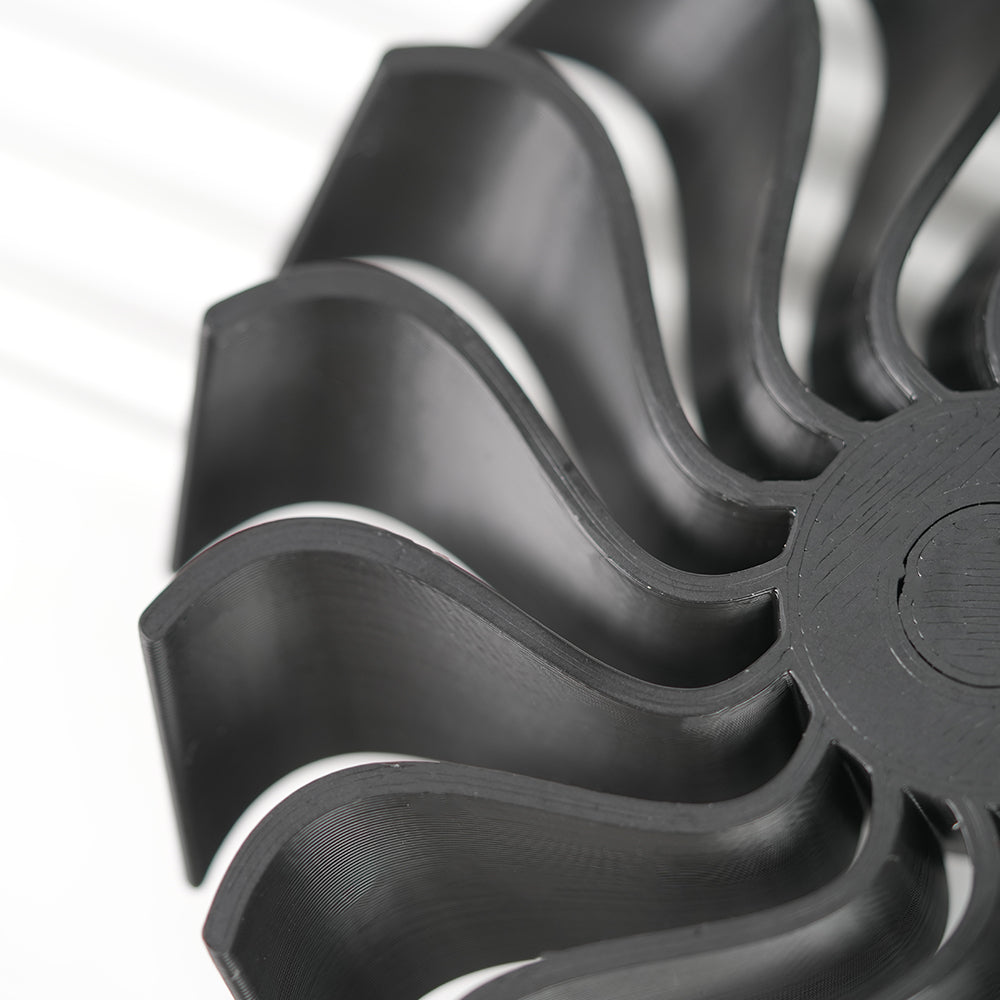

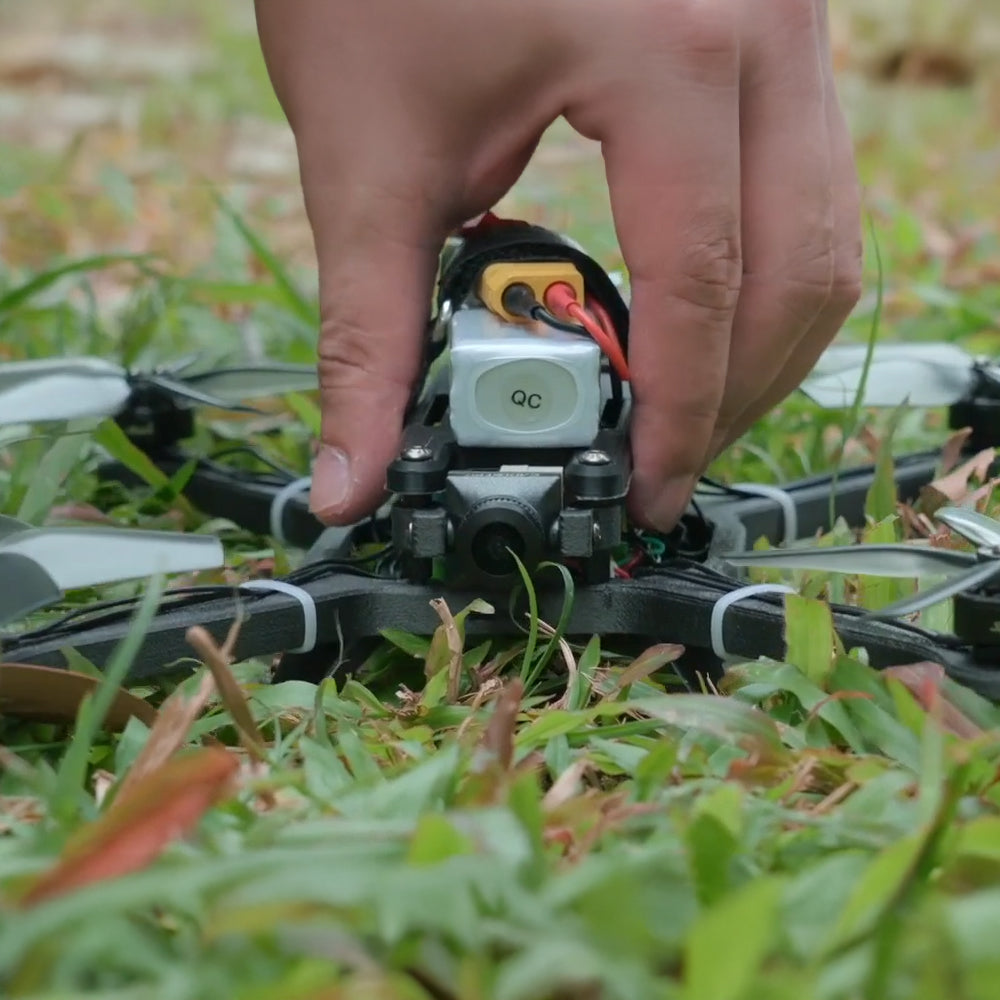

Engineered for strength and durability, SUNLU PA6-CF filament is suitable for industrial uses that require high torsional, tensile, and impact resistance. Ideal applications include gears, screws, helmets, fan blades, toy car chassis, skateboard parts, and bicycle frames.
With a heat distortion temperature of up to 209°C, significantly higher than Easy PA, PC, or ASA, PA6-CF is ideal for high-temperature applications like automotive exhaust pipes, motor covers, pot handles, and kettle bases.
[Important Notes]
1. Dry the filament before use: 80°C for 24 hours or 110°C for 4 hours.
2. Use an abrasion-resistant nozzle (e.g., hardened steel) to prevent wear caused by the filament's carbon fiber content.
| Recommended Printing Settings | |
|---|---|
| Drying Settings (Blast Drying Oven) | 80-110℃ |
| Printing and Keeping Container's Humidity | < 20% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 270-290℃ |
| Bed Temperature (With Glue) | 50 - 70 °C |
| Printing Speed | 50mm- 100 mm/s |
| Physical Properties | |
|---|---|
| Density | 1.2 g/cm³ |
| Vicat Softening Temperature | / |
| Heat Deflection Temperature | 209°C |
| Melting Temperature | 225°C |
| Melt Index | 15 g/10 min |
| Mechanical Properties | |
|---|---|
| Tensile Strength | 170 MPa |
| Breaking Elongation Rate | 10% |
| Flexural Strength | 245 MPa |
| Flexural Modulus | 11000 MPa |
| Impact Strength(X-Y) | 9.7 kJ/m² |
